HFSecurity Bio7 Plus Automatic Device Ten-Print Scanner FBIs Appendix F Certified For Enrollment

Product Categories
Shenzhen Bio Technology Co.,Ltd
Contact Now

HFSecurity Bio7 Plus Automatic Device Ten-Print Scanner FBIs Appendix F Certified For Enrollment

Brand Name : HFSecurity

Model Number : Bio 7 Plus

Certification : CE FCC ISO

Place of Origin : Guangdong

MOQ : 1MOQ

Price : 120

Payment Terms : T/T, Western Union

Supply Ability : 1000 piece week

Delivery Time : 1-3 days

Packaging Details : carton box

Fingerprint Types : Four finger slaps, two thumbs, single flats/rolls

Image Size : 3.2” x 3.0” (1600 x 1500 pixels) for slap

Capture Area : 3.6” x 3.2” (92mm x 81mm

Image Certification : FBI’s IAFIS IQS Appendix-F

Resolution : 500 dpi, 256 levels of gray

Image & Template Format : BMP, WSQ, ISO19794-2/4, ANSI/NIST 378

Acquisition Mode : Auto capture or manual mode

Smart Indicators : Power, finger position and rolls status LED

Buzzer : On board programmable buzzer

MTBF : More than 50,000 hours

Dimensions : 160mm(L) x 135mm(W) x 90mm(H)

Weight : 1.2 kg

Interface : USB 2.0 for data transfer & power supply

Operating System : Windows, Android

Software : Scan demo and essential APIs

Operating Temperature : 0°C to 50°C

Storage Temperature : -20°C to 60°C

Humidity Range : 10% to 90%, non-condensing

Contact Now

HFSecurity Bio 7 Plus Ten-print Scanner FBIs Appendix F Certified



HFSecurity Bio7 Plus Automatic Device Ten-Print Scanner FBIs Appendix F Certified For Enrollment

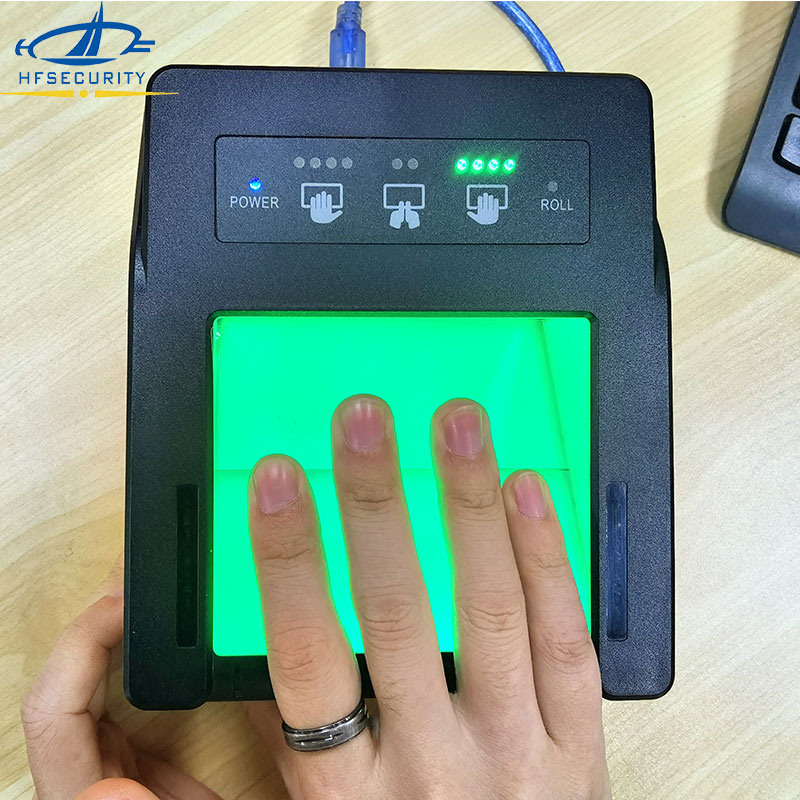

HFSecurity Bio7plus is the compact and lightest ten-print scanner fully

complaint with FBI’s IAFIS Appendix-F specification which enables the

scanner to deliver reliable and superior image quality and make it the

optimal capturing device for national ID enrollment or background check.

The HFSecurity employs the most advanced optical technology and dedicated

special lighting source plus the enhanced fingerprint identification algorithm

that allow the high speed finger capturing and seamless image processing

including rolled prints. The integrated automatic capture functionality ensures

rapid capturing of high quality image for biometric data collection and

eliminates the possible reprint issues.



HFSecurity Bio7 Plus Automatic Device Ten-Print Scanner FBIs Appendix F Certified For Enrollment



Fingerprint Types Four finger slaps, two thumbs, single flats/rolls
Image Size 3.2” x 3.0” (1600 x 1500 pixels) for slap
1.6” x 1.5” (800 x 750 pixels) for rolled
Capture Area 3.6” x 3.2” (92mm x 81mm
Image Certification FBI’s IAFIS IQS Appendix-F
Resolution 500 dpi, 256 levels of gray
Image & Template Format BMP, WSQ, ISO19794-2/4, ANSI/NIST 378
Acquisition Mode Auto capture or manual mode
Smart Indicators Power, finger position and rolls status LED
Buzzer On board programmable buzzer
MTBF More than 50,000 hours
Dimensions 160mm(L) x 135mm(W) x 90mm(H)
Weight 1.2 kg
Interface USB 2.0 for data transfer & power supply
Operating System Windows, Android
Software Scan demo and essential APIs
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 60°C
Humidity Range 10% to 90%, non-condensing



HFSecurity Bio7 Plus Automatic Device Ten-Print Scanner FBIs Appendix F Certified For Enrollment



• Slide detection for flat prints capturing

• Supports latent prints and halo elimination

• Automatic device calibration when scanner starts up

• Segmentation of slap into discrete single image

• Automatic sequence and image quality checking

• Correct finger position and slap completeness check

• Auto capture functionality to eliminate reprint issues

• Smart indicators for intuitive instructions



HFSecurity Bio7 Plus Automatic Device Ten-Print Scanner FBIs Appendix F Certified For Enrollment
